Improvement #3453

open

Add new angle icon to nested elements

Added by liaham 3 months ago. Updated 8 days ago.

Status:

Feedback

Priority:

Normal

Assignee:

liaham

Target version:

upstream

Start date:

06/27/2025

Due date:

% Done:

50%

Estimated time:

Compatible Redmine Version:

6.0.z

Pull Request Link:

n/a

Requires Documentation?:

Description

The old angle is still integrated in project and issue lists:

Files

Download all files

clipboard-202505131739-ajtfn.png (78.5 KB) clipboard-202505131739-ajtfn.png		liaham, 05/13/2025 05:39 PM
clipboard-202506301652-durwf.png (25.9 KB) clipboard-202506301652-durwf.png		liaham, 06/30/2025 04:52 PM
clipboard-202506301653-ppag5.png (25.5 KB) clipboard-202506301653-ppag5.png		liaham, 06/30/2025 04:53 PM

Actions

Copy link

Updated by liaham about 1 month ago

Parent task set to #3597

Actions

Copy link

Updated by liaham about 1 month ago

This is an error in RM: see https://www.redmine.org/issues/42907. We need to keep the old icon until it is fixed in RM.

Actions

Copy link

Updated by liaham about 1 month ago

The task was closed. That is, it is not considered as a bug.

I suggested to provide a patch where the chevron icon is integrated as customizable tabler icon.

For doing so, changes are probably required in:

projects,
issues,
repositories.

Actions

Copy link

Updated by liaham about 1 month ago

Tracker changed from Maintenance to Pull Request
Project changed from 20 to Redmine
Target version changed from unreleased to 6.0.0
Pull Request Link deleted (~~n/a~~)

Actions

Copy link

Updated by liaham about 1 month ago

Status changed from New to In Progress
Start date set to 06/27/2025
% Done changed from 0 to 30

Actions

Copy link

Updated by liaham about 1 month ago · Edited

All existing tests are successful. - skipping SCM and LDAP tests.

Some new tests are required:

app/helpers/application_helper.rb: link_to_project with and without Struct
app/helpers/projects_queries_helper.rb: column_value_with_subitem_icon with and without Struct
app/helpers/queries_helper.rb: column_content_with_subitem_icon and column_content with and without Struct

Actions

Copy link Download all files

Updated by liaham about 1 month ago

File clipboard-202506301652-durwf.png clipboard-202506301652-durwf.png added
File clipboard-202506301653-ppag5.png clipboard-202506301653-ppag5.png added
Status changed from In Progress to Feedback
% Done changed from 30 to 50

Issue and projects lists with sub items are using an svg image of tabler different to other chevron icons in Redmine. Moreover, the svg image cannot be styled.

In order to ensure a consistent user experience I added a patch implementing the chevron icon as sprite icon:

The example shows sub projects. Changes will also affect sub issues.

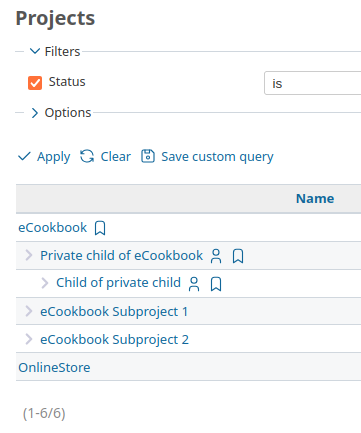

Before:

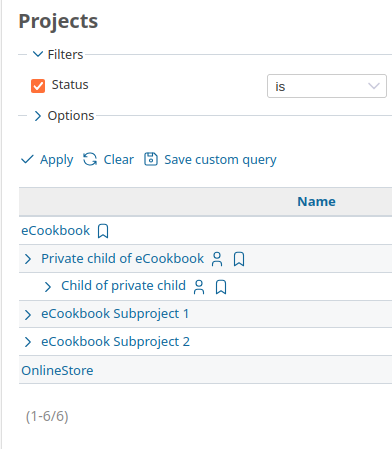

After:
